Low ESR SMD Tantalum Capacitors

features and applications

Capacitors play a critical role in electronics, especially in power management and signal processing. Tantalum capacitors, known for their high capacitance, compact size, and stable performance, are popular in a range of applications. Among these, low ESR (Equivalent Series Resistance) tantalum capacitors are favored in high-frequency applications due to their low internal resistance. This article explores the features, advantages, and applications of low ESR SMD (Surface Mount Device) tantalum capacitors in today’s electronics.

1. What is a Low ESR Tantalum Capacitor?

Tantalum capacitors use tantalum metal as the anode, offering durability, reliability, and consistent performance. ESR, or Equivalent Series Resistance, is an important parameter that represents the total resistance within the capacitor, including contributions from the electrolyte and other internal components. Low ESR tantalum capacitors are designed with minimized internal resistance, reducing energy loss and heat generation at high frequencies, making them a great fit for circuits that need steady power.

Low ESR tantalum capacitors commonly come in SMD packaging, which reduces size and improves performance in high-speed circuits. Compared to traditional leaded tantalum capacitors, the SMD version enables higher production automation, significantly improving manufacturing efficiency.

2. Advantages of Low ESR Tantalum Capacitors

Due to their low internal resistance and excellent high-frequency characteristics, low ESR tantalum capacitors offer several notable benefits:

Lower Power Losses
With low ESR, these capacitors minimize power losses at high frequencies, which is especially valuable in portable devices where efficient energy use is a priority.

Reduced Heat Generation
Low ESR reduces heat buildup in the capacitor, which is essential for high-power and high-frequency applications. This minimizes thermal stress on the capacitor, preventing performance degradation and extending its lifespan.

Superior High-Frequency Performance
Low ESR tantalum capacitors exhibit low impedance at high frequencies, making them ideal for applications like high-frequency filtering and decoupling. This quality makes them an ideal choice in switching power supplies, RF circuits, and other fast-switching designs.

Stability and Reliability
Low ESR tantalum capacitors maintain stable performance across temperature changes and in high-frequency environments. This reliability is especially crucial in temperature- and frequency-sensitive applications, such as automotive electronics and aerospace.

3. Application of Low ESR Tantalum Capacitors

Switching Power Supplies
Switching power supplies operate at high frequencies where low ESR tantalum capacitors, with their excellent frequency characteristics, help to stabilize output current, reduce ripple voltage, and boost power conversion efficiency.

Filtering and Decoupling
In filter circuits, low ESR tantalum capacitors work as high-frequency filters, reducing noise and keeping signals clean. For decoupling circuits, they help eliminate electromagnetic interference, providing power stability.

Portable Devices
Portable devices like smartphones and tablets need capacitors that support efficient power use. Low ESR tantalum capacitors help reduce power losses, contributing to longer battery life and are thus widely used in consumer electronics.

Automotive Electronics
Automotive electronics require capacitors with high stability and resilience to handle vehicle vibrations and temperature shifts. Low ESR tantalum capacitors are built to withstand these conditions, making them suitable for automotive applications.

Telecommunications Equipment
In telecom equipment such as routers and base stations, stable power is essential. Low ESR tantalum capacitors help smooth out voltage variations, ensuring high-quality signal transmission.

4. Choosing the Right Low ESR Tantalum Capacitor

When selecting low ESR tantalum capacitors, engineers should consider several factors, including capacitance, rated voltage, operating temperature, ESR value, and package type based on specific application requirements. For instance, in switching power supplies, a capacitor with low ESR and moderate rated voltage is recommended, while in compact designs like portable devices, small size and appropriate capacitance are key.

Reliability is another important factor, as excessive voltage can cause failure in tantalum capacitors due to their thin tantalum oxide layer. Therefore, it’s best to avoid exceeding the rated voltage for optimal performance and longevity.

5. Conclusion

Low ESR SMD tantalum capacitors provide essential support for circuit designs, with low internal resistance and strong high-frequency performance. They are a popular choice in fields such as switching power supplies, filtering and decoupling, portable electronics, automotive applications, and telecommunications. As the demand for high-frequency stability and low energy consumption grows, the use of low ESR tantalum capacitors will continue to expand across various industries.



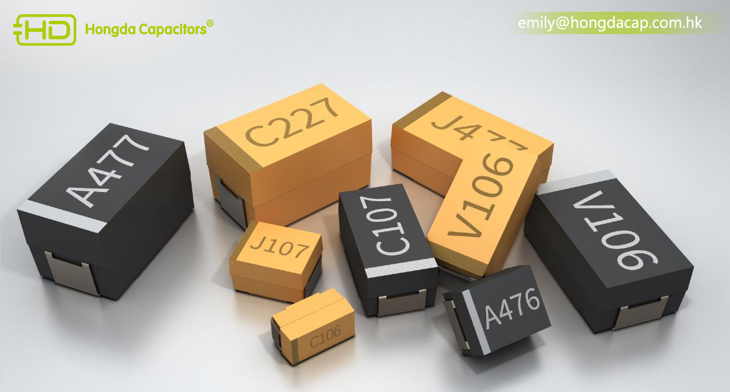

Hongda Capacitors offer high quality Low ESR SMD Tantalum capacitors- CA45L series

Features:

Operating Temperature Range: -55 ℃ ~ +125 ℃

Capacitance Range: 1uF~1000uF

Voltage Range: 4V, 6.3V, 10V, 16V, 20V, 25V, 35V, 50V

Capacitance Tolerance: K: +/-10%; M: +/-20% (+/-20% tolerance is standard)

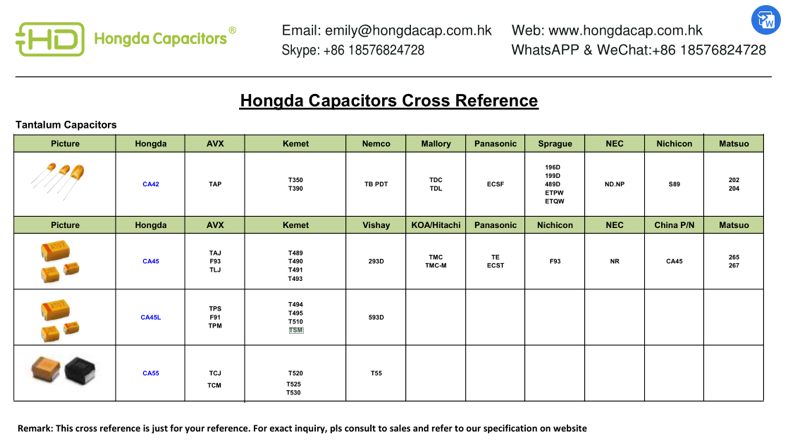

Hongda CA45L series cross to AVX TPS series, F91 series, TPM series, Kemet T494 series, T495 series, T510 series, TSM series...
