How to select tantalum capacitor?

2024-11-24

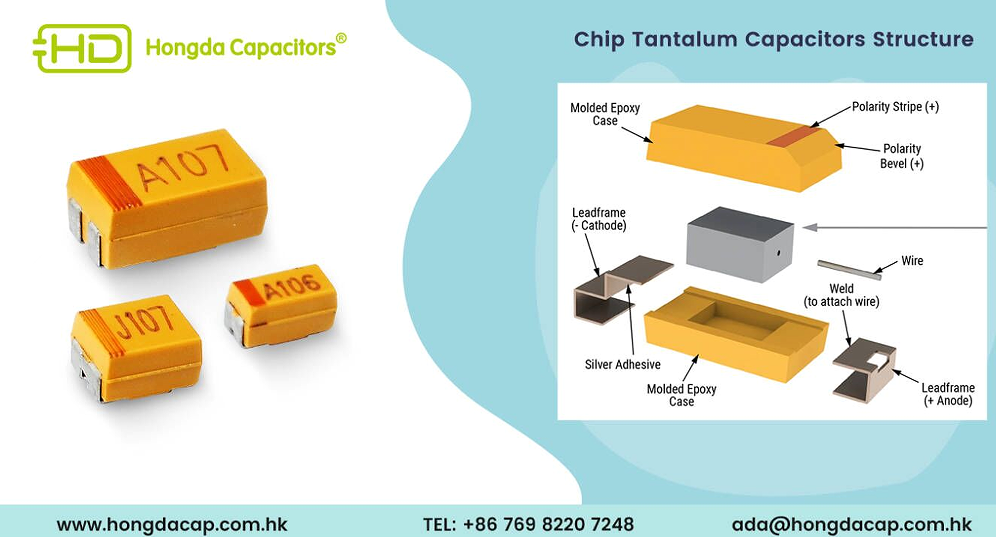

When selecting the right tantalum capacitors for your application, there are several important factors to consider. Here’s a selection guide to help you make the best choice!

1. Capacitance Value

To determine the required capacitance value for your tantalum capacitor, start by understanding the role it plays in your circuit—whether for decoupling, filtering, or timing. Analyze your specific application to identify the capacitance needed based on load conditions and frequency requirements. Additionally, consult design guidelines and manufacturer datasheets for recommended values. Don’t forget to account for tolerances, which can affect the effective capacitance, and apply derating practices to enhance reliability by selecting a capacitor with a value higher than the calculated minimum. This careful evaluation ensures optimal performance and longevity in your application.

2. Voltage Rating

When selecting a tantalum capacitor, it's crucial to consider the voltage rating. Ensure that the capacitor's voltage rating exceeds the maximum voltage present in your application to avoid breakdown and potential failure. It’s advisable to choose a capacitor with a voltage rating at least 1.5 times the maximum working voltage. This derating provides a safety margin against voltage spikes and variations, thereby enhancing the reliability and lifespan of the capacitor in your circuit. Always factor in any transient voltages that may occur during operation!

3. Temperature Stability

When choosing tantalum capacitors, it's important to consider the temperature stability for your specific application. Assess the operational temperature range that the capacitor will experience—tantalum capacitors typically operate within a standard temperature range, but some variants can handle temperatures up to 125°C or even higher. Ensure that the selected capacitor is rated for the temperature extremes of your application, as performance can degrade or failure can occur outside the specified limits. This consideration is vital for maintaining reliability and functionality in demanding environments.

4. Ripple Current Rating

When selecting a tantalum capacitor, pay close attention to the ripple current rating, which indicates the maximum amount of alternating current (AC) that the capacitor can handle without overheating. It’s important to choose a capacitor with a ripple current rating that exceeds the expected ripple current in your application. This ensures safe operation and minimizes the risk of capacitor failure due to excessive heat buildup. Designing for a comfortable margin—typically at least 30-50% above the expected ripple—will help ensure reliability in high-frequency or pulsed applications. Always consult the manufacturer's specifications to find the appropriate ripple current ratings for various capacitor models.

5. ESR (Equivalent Series Resistance)

Pay close attention to the Equivalent Series Resistance (ESR) value, as it significantly impacts the capacitor's efficiency and thermal performance. Lower ESR is generally preferable because it reduces energy losses and heat generation, which is particularly important in high-frequency applications, where performance and stability are critical. A high ESR can lead to increased heat and potential capacitor failure, so aim for components with the lowest ESR necessary for your design to ensure optimal performance and reliability. This factor is especially vital in power supply circuits and high-switching environments.

6. Size and Footprint

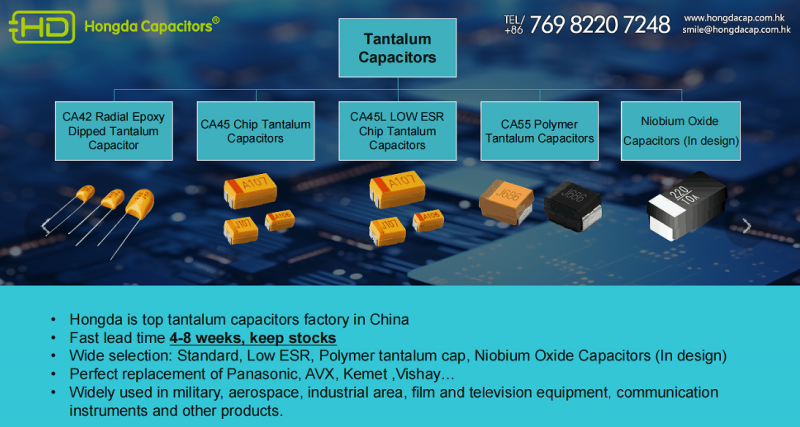

It's essential to consider their physical size and footprint, particularly for compact designs where space is limited. Tantalum capacitors are available in various package sizes (such as surface mount or through-hole), so select one that fits your PCB layout while meeting the capacitance and voltage requirements. Ensure the chosen size allows for proper thermal dissipation and complies with your manufacturing processes. A well-matched size can improve assembly efficiency and help optimize overall circuit design.

7. Application Environment

It's essential to assess the application environment carefully. Consider factors such as humidity, temperature fluctuations, vibration, and exposure to harsh chemicals. Choose capacitors that are specifically rated for these conditions to ensure optimal performance and longevity. For instance, if your application operates in high-humidity or corrosive environments, select tantalum capacitors with protective coatings or higher moisture resistance. Similarly, if the application is subject to mechanical stress or vibration, opt for capacitors designed to withstand such conditions. This assessment will help prevent premature failures and ensure reliable circuit operation..

8. Life Expectancy

Determine the expected life of the capacitor, typically rated in hours at a specified temperature. Longer life ratings are critical in mission-critical applications.

9. Manufacturer Reliability

Choose reputable manufacturers known for quality and reliability to reduce the risk of failures in your application.

10. Cost Considerations

Finally, consider your budget. While tantalum capacitors are generally more expensive than other types, their performance in specific applications can justify the cost.

Additional Tips

Decoupling Applications: For decoupling applications, shorter leads and a lower ESR can reduce noise and improve performance.

Derating: It’s a common practice to derate tantalum capacitors by a certain percentage (often 50%) to enhance reliability.
