There are numerous misconceptions about tantalum capacitors and their applications. Some of these misconceptions are outright falsehoods, while others stem from misunderstandings.

When using a product for a long time, it’s easy to take it for granted. We rely on the smooth operation of our cars, smartphones, computers, and other electronics. However, sometimes the performance of these devices can seem almost too good to be true.

This is particularly the case with tantalum capacitors, which play a crucial role in maintaining the peak performance of many electronic devices. Let us understand tantalum capacitor more.

What is a Tantalum Capacitor?

A tantalum capacitor is a type of passive electronic component that stores energy in an electric field. Named after the element tantalum used in its construction, it features ceramic or tantalum oxide plates inside. These internal plates are separated by a thin layer of electrolyte, which can be either solid or gel. This electrolyte layer facilitates the flow of electric current between the plates when an external DC voltage is applied.

Tantalum capacitors are widely used in various applications and devices, including computers, cell phones, cars, and aircraft. They are also prevalent in high-end audio equipment, power supplies, and military systems. These capacitors serve multiple functions, such as filtering and voltage stabilization.

One of the unique features of tantalum capacitors is their super-thin nature, which makes them highly permeable. Additionally, they offer high capacitance per volume compared to many generic capacitors available on the market. Despite being relatively lighter, they can still carry more capacitance than other types of capacitors.

Using derating for tantalum capacitors involves reducing their operating parameters to enhance reliability and lifespan. Here are some specific derating methods:

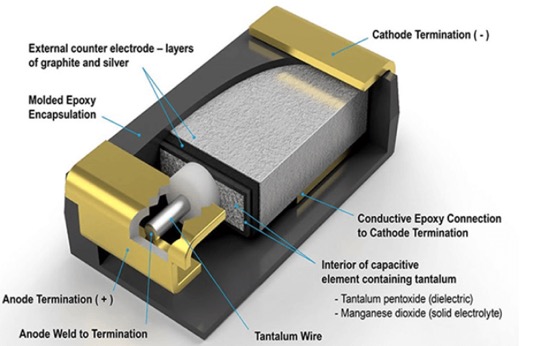

Basic Working Principle of Tantalum Capacitors

The basic working principle of tantalum capacitors is similar to that of other capacitors, but their construction and packaging set them apart.

Tantalum capacitors are made up of two metal plates separated by a thin layer of dielectric material, typically a solid or gel electrolyte. The electrolyte acts as an insulator, allowing electric current to flow between the plates only when an external DC voltage is applied.

Here’s a more detailed breakdown:

Identification method of tantalum capacitor

Structure:

Metal Plates: These form the core conductive elements of the capacitor.

Dielectric Material: This is usually a solid or gel electrolyte that separates the metal plates and acts as an insulator.

Operation:

With Voltage Applied: When an external DC voltage is applied across the plates, the dielectric allows current to flow between them.

Without Voltage: No current flows between the plates because the dielectric material acts as an insulator, preventing electrical conduction.

Efficiency at High Frequencies:

Tantalum capacitors have a high dielectric constant and perform efficiently at high frequencies, making them ideal for applications that require reliable performance at these frequencies.

Types of Dielectric Materials:

Solid Electrolyte: This is a ceramic-like substance with low moisture absorption, making it suitable for high-temperature applications and consumer electronics.

Gel Electrolyte: This has slightly higher moisture absorption than solid electrolytes but is still low compared to other types of capacitors. It offers good performance and reliability.

Sensitivity and Conductivity:

Solid Electrolytes: These are highly conductive and sensitive to voltage spikes. Reversing the polarity can break the oxide layer or dielectric material.

Proper derating of tantalum capacitors

Proper derating of tantalum capacitors can enhance their reliability and lifespan. Here are some methods and recommendations for derating tantalum capacitors:

1.Voltage Derating

Derating Ratio: It is generally recommended to derate the operating voltage of tantalum capacitors to 50% to 70% of their rated voltage. For example, a tantalum capacitor rated at 10V should ideally operate at 5V to 7V.

Reason: Derating voltage reduces the electric field strength inside the capacitor, thus decreasing the risk of breakdown and extending its lifespan.

2.Temperature Derating

Operating Temperature Range: Tantalum capacitors typically operate between -55°C and +125°C. In practice, try to keep the operating temperature below 85°C.

Derating Recommendation: High temperatures accelerate the aging process of the capacitor, so lowering the operating temperature can extend its lifespan.

3.Current Derating

Surge Current: Tantalum capacitors are very sensitive to surge currents. Therefore, circuit designs should include measures to limit surge currents, such as using current-limiting resistors.

Derating Method: Ensure that the operating current does not exceed 50% of the capacitor’s rated current.

4.Application Environment Considerations

Choose the Appropriate Capacitor Type: Different types of tantalum capacitors (such as solid tantalum capacitors and wet tantalum capacitors) have varying derating standards. Refer to the manufacturer's derating guidelines for specific models.

High-Reliability Applications: In applications requiring high reliability, such as aerospace and medical equipment, the derating ratio should be higher to ensure stability and safety.

Practical Application Considerations

Prevent Reverse Voltage: Tantalum capacitors cannot withstand reverse voltage, which can cause damage.

Regular Inspection: Regularly check the performance of the capacitors during use and replace them if anomalies are found.

Compliance with Standards: Ensure that the capacitors comply with relevant international standards and industry regulations.

By properly derating tantalum capacitors, you can significantly enhance their reliability and lifespan, thus reducing system maintenance costs.
