Characteristics of Passive Components Used in Consumer Electronics

2024-06-22

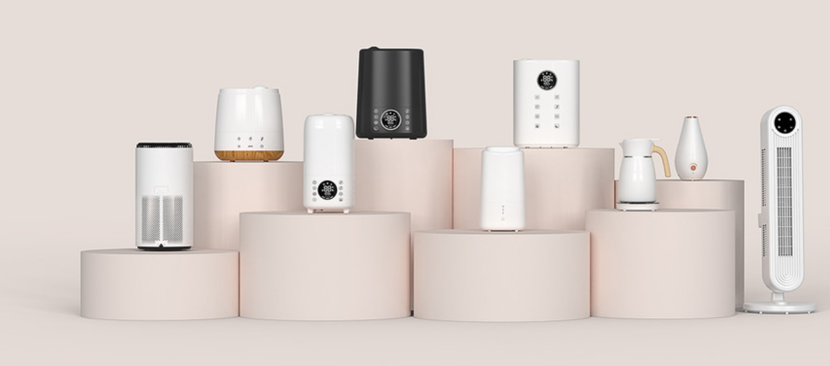

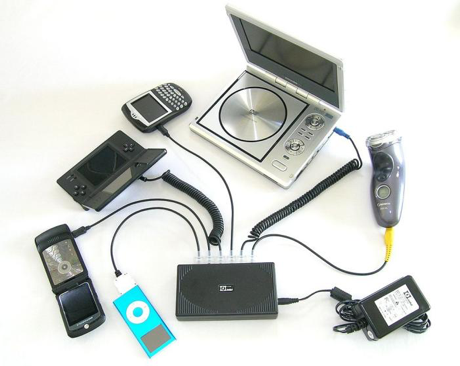

Consumer electronics refers to electronic devices for daily use by consumers, which usually have the advantages of small size, light weight, simple operation and energy-saving design. According to different functions, consumer electronics products can be divided into three major categories: entertainment products, communication products, and home office products, and their outer edges are constantly expanding. White household appliances, baby furniture, etc. have gradually been included in the category of consumer electronics, and the functions of a single product are also Showing a trend of diversification.

1. Miniaturization

Small Size: Consumer electronics require miniaturized passive components to integrate more functions within limited space. This often involves using tiny sizes such as 0201 and 0402 for capacitors, resistors, and inductors.

Lightweight: Miniaturization also contributes to the overall lightweight design of the product, which is especially important for portable devices like smartphones, tablets, and wearables devices

2. High Performance

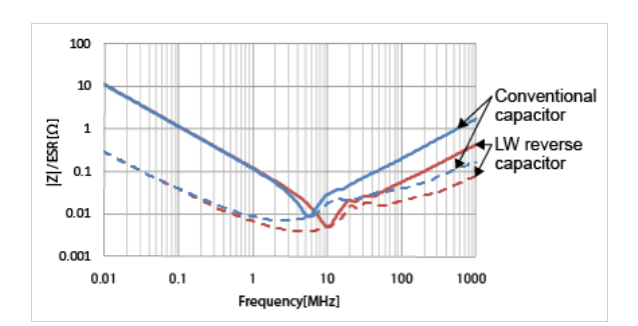

High Capacitance and Low ESR: Capacitors need to provide high capacitance values while maintaining low equivalent series resistance (ESR) to ensure efficient power filtering and energy storage.

High Q-Factor: Inductors need to have a high quality factor (Q-factor) to improve circuit efficiency and performance, especially in high-frequency applications.

High Precision: Resistors and capacitors require high precision and low temperature coefficients to ensure circuit accuracy and stability.

3. High Reliability

High Temperature Resistance: Passive components must be able to operate stably in high-temperature environments due to the heat generated during the use of consumer electronics.

Mechanical Stress Resistance: These components need to withstand mechanical stress and vibration to ensure reliability in various physical environments.

Long Lifespan: Passive components need to have a long lifespan to support the long-term use of consumer electronics.

4. Low Power Consumption

Low Leakage Current: Capacitors and other passive components need to have low leakage current to reduce overall power consumption and extend battery life.

Efficient Energy Conversion: Components like inductors and transformers need efficient energy conversion capabilities to minimize power loss.

5. Environmental and Compliance

Lead-Free and Eco-Friendly Materials: Passive components need to comply with environmental regulations such as RoHS (Restriction of Hazardous Substances), using lead-free and eco-friendly materials.

Compliance with International Standards: Components need to pass international standard certifications such as AEC-Q200 and UL certification to ensure their quality and reliability.

6. Cost-Effectiveness

Cost Control: Due to the highly competitive consumer electronics market, manufacturers need to control the cost of passive components to achieve product price competitiveness.

Specific Component Characteristics

1.Capacitors:

MLCC (Multilayer Ceramic Capacitors): Provide high capacitance and low ESR, suitable for power filtering and decoupling.

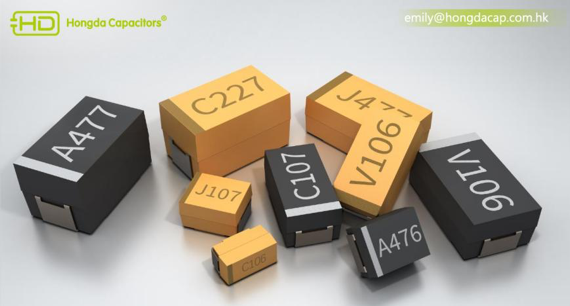

Tantalum Capacitors: High stability, suitable for applications requiring high reliability.

Resistors:

Thin-Film Resistors: High precision and low temperature coefficient, suitable for precision circuits.

Current-Sensing Resistors: Low resistance and high power, suitable for power management and monitoring.

Inductors:

High-Q Inductors: Suitable for high-frequency applications such as RF circuits and filters.

Power Inductors: Used in DC-DC converters and switching power supplies, with efficient energy conversion capabilities.

In summary, the characteristics of passive components used in consumer electronics include miniaturization, high performance, high reliability, low power consumption, environmental compliance, and cost-effectiveness to meet the high demands for functionality, performance, and design in modern consumer electronic products.
